LS8T41505
Loongson 8T41505 is a multi-channel clock generator with frequencies ranging from 25MHz to 200MHz. It is compatible with other clock generators in different output modes, such as LVDS, LVCMOS, and LP-HCSL, and can generate clocks at various multiples of the reference input frequency.Mainly combined with Loongson 3 Family processors + LS7A1000.
LS8T41505
Loongson 8T41505 is a multi-channel clock generator with frequencies ranging from 25MHz to 200MHz. It is compatible with other clock generators in different output modes, such as LVDS, LVCMOS, and LP-HCSL, and can generate clocks at various multiples of the reference input frequency.Mainly combined with Loongson 3 Family processors + LS7A1000.
LS8T41505 Specification
Supply voltage
3.3V, 1.8V
OUT0
25MHz/100MHz LVCMOS
OUT1
33MHz LVCMOS×2, 100MHz LP-HCSL×1, 25MHz LP-HCSL×1
OUT2
100MHz LVCMOS×2, 100MHz LP-HCSL×1, 200MHz LVDS×1, 156.25MHz LP-HCSL×1
OUT3
5-11: 100MHz LP-HCSL×8
OUT4
100MHz/200MHz LVDS×1, 100MHz LP-HCSL×1
LS8T41505 Manual
LS8T41505 Application

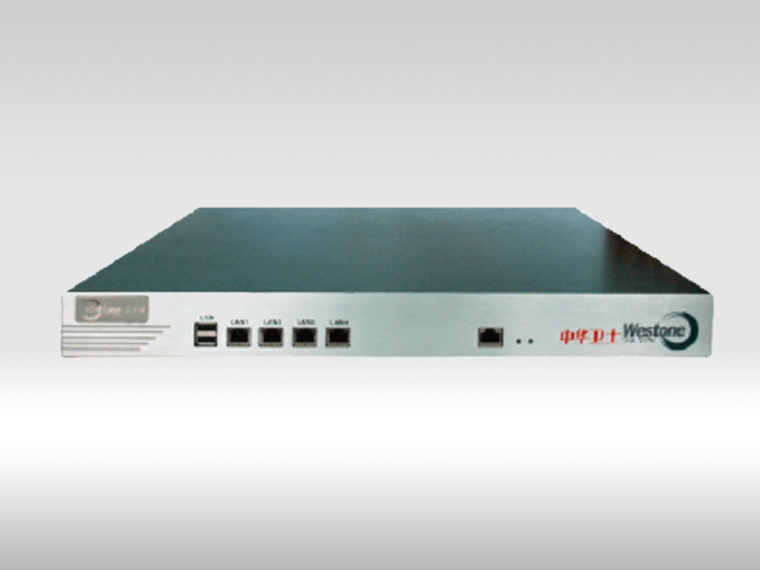

VPN
Bidirectional server
Desktop
Bastion Host
Load Balance
High-Performance firewall
Core switch
自助終端.png)
Industry self-service terminal
Cryptograph
據(jù)雙向網(wǎng)閘.png)
Data bidirectional gateway
據(jù)網(wǎng)關.png)
Data gateway
